1500mAh 25W Vision Vapros iBox VV / VW Multi-functional mod is an innovative mod with multi-functions like external output to charge your phones, the minimum resistance value setting, cut-off time setting, time setting, besides the common VV and VW and resistance value detection etc.;


Features:
1. Date and time adjustment;
2. External output control;
3. Resistance protection control;
4. Cut-off time control;
5. Three controlling mechanisms;
6. VV / VW two modes;

Specifications:

510 threading connection (chromed brass center pin);

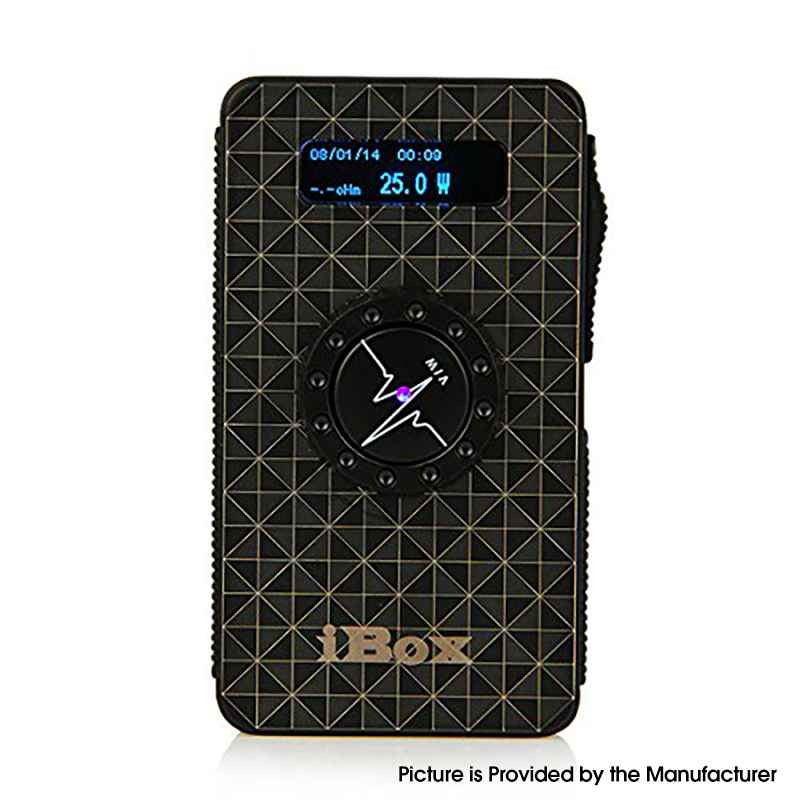

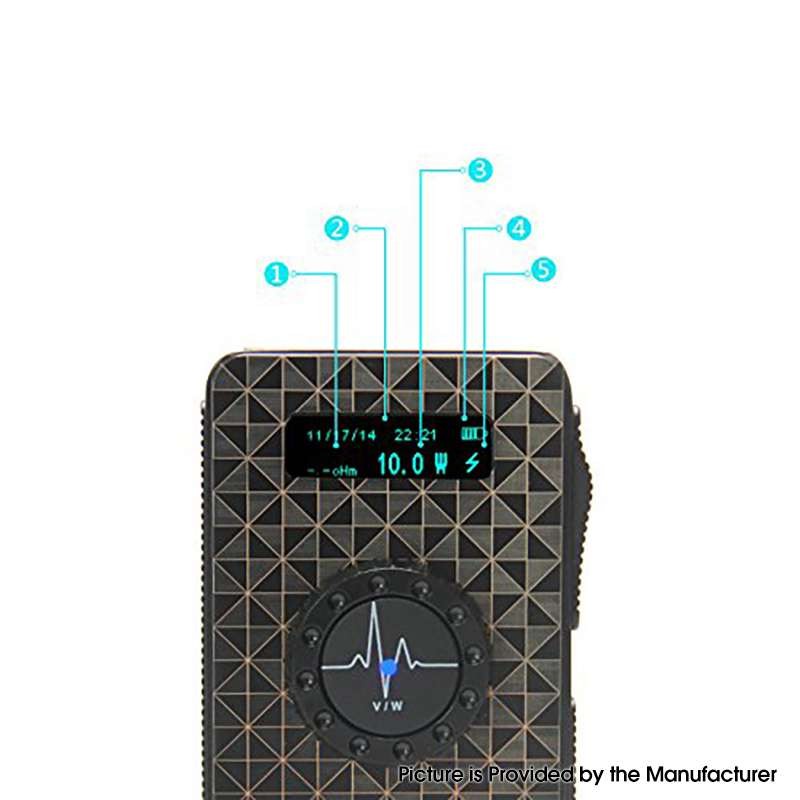

1.15 inch OLED display screen show wattage, voltage, resistant, battery level, date and time;

Variable wattage: Can be adjustable from 3.0~25W (in 1.0W increment);

Variable voltage: Can be adjustable from 3.0~6.0W (in 0.1 increment);

Built-in battery: 1500mAh;

Resistance Range: 0.5~1.8ohm;

Cut-off Time Range: 8~18 seconds;

Input: 5V/500mA;

AC power charger adapter:

US plug;

Input: AC 100~240V;

Output: DC 5V, 500mA

How to Operate:
Turn on/off: when the iBox is off, pressing the round center button for 2 seconds will enable it. After it's turned on, also press the center button for 2 seconds, it will enter the management console, which shows 6 icons. You can choose each icon by rotating the center button; To turn it off, choose the first sub-menu and click the enter button once.

VV/VW mode exchange: these two modes can be easily changed by clicking the center button once.

Time management: use the rotating wheel to choose the second icon and click the center button to enter. Then you can reset time through the rotating wheel and click enter button to get to next section.

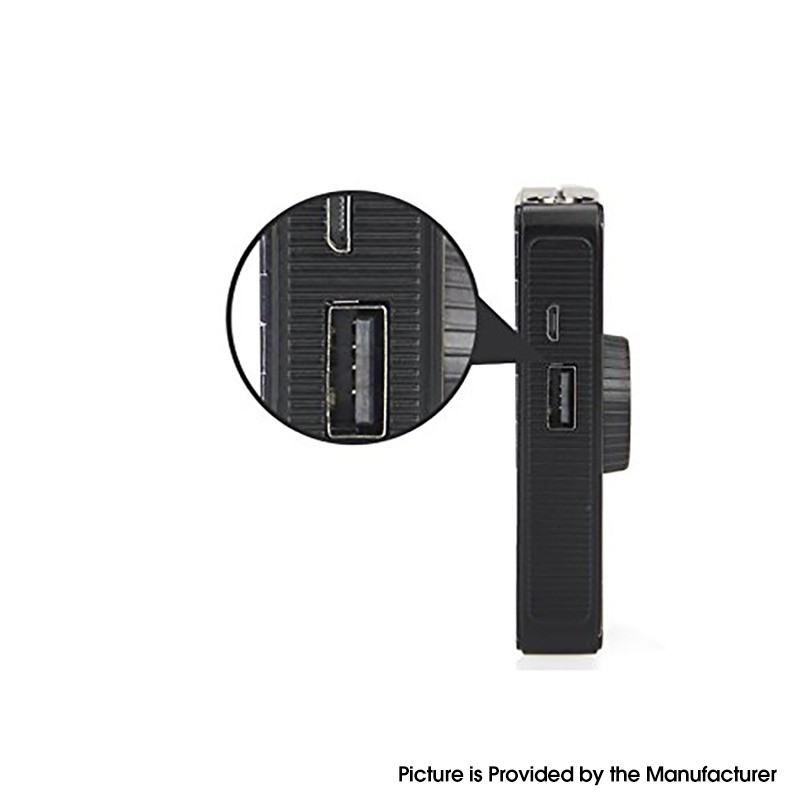

External output control: use the rotating wheel to choose the third icon and click the center button to enter. Once clicked, it goes back to the main interface with a lighting sign on the main interface. To be deactivated, repeat the same procedure.

Resistance protection control: use the rotating wheel to choose the fourth icon and click the center button to enter. The range of adjustment is between 0.5ohm to 1.8ohm. Once set, with any carto having lower ohm value than the setted value, the device will report "RESISTANCE PROTECTION" on main screen and stop the power button to work.

Cut-off time control: use the rotating wheel to choose the fifth icon and click the center button to enter. The range of adjustment if between 8 - 18 seconds. Once set, at the configured length of power output (as indicated by the running clock when push the sliding button at side), the device will cut off power output for safety purpose.

Exit: use the rotating wheel to choose the sixth icon and click the center button to enter. It exits the management console and goes back to the main interface.

Charging the device: charge can be done by only use the USB cable, or with both the USB cable and the AC adapter.

3F is a professional retail, wholesale and dropship online shop. We provide new and cool products at affordable price. We have overseas warehouse for you for fast delivery.

If you find a product to be authentic, then it is not a clone. [Ships from Battery Warehouse] Authentic Vision Vapros iBox 1500mAh Variable Voltage / Wattage VV / VW Box Mod - Black, 3~6V, 3~25W, review, price, shipping

All the sizes are measured manually, please allow tiny differences due to manual measurement, thanks.

The parameters are for reference only; The details are subject to the official / manufacturer; Please tell us if there is any error.
